Order number: XC-3020-CXR
Shoe sewing machine types Shoe sole sewing machine
Drive type electric
Number of needles single needle
Custom processing: Yes
Stitch type outside machine
Sewing thickness 20(mm)
Number of lines single line
Operation type fully automatic
Stitch length 0.1-12(mm)
Product Type New

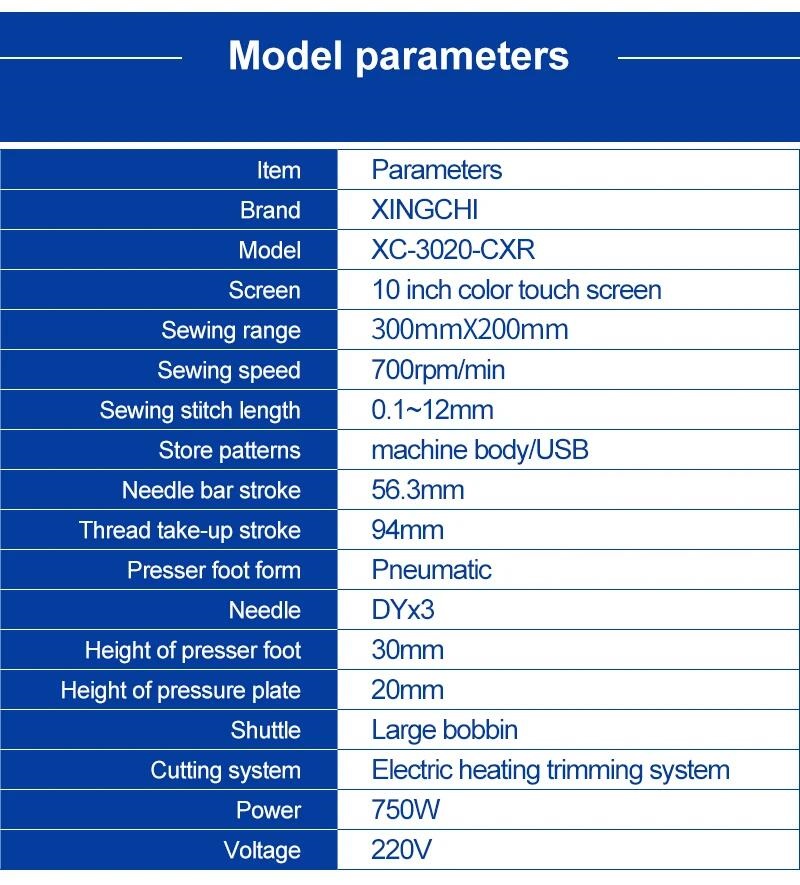

Details:
Sewing range:450*200mm
700rpm maximum speed:
Speed setting: 200-700RPM
Stitch length: 0.1-12mm
Maximum number of needles: 20,000 needles/1 pattern
Pattern storage::520 patterns, internal storage
Needle used: DY*3
Use shuttle bed: shuttle, HAD-204

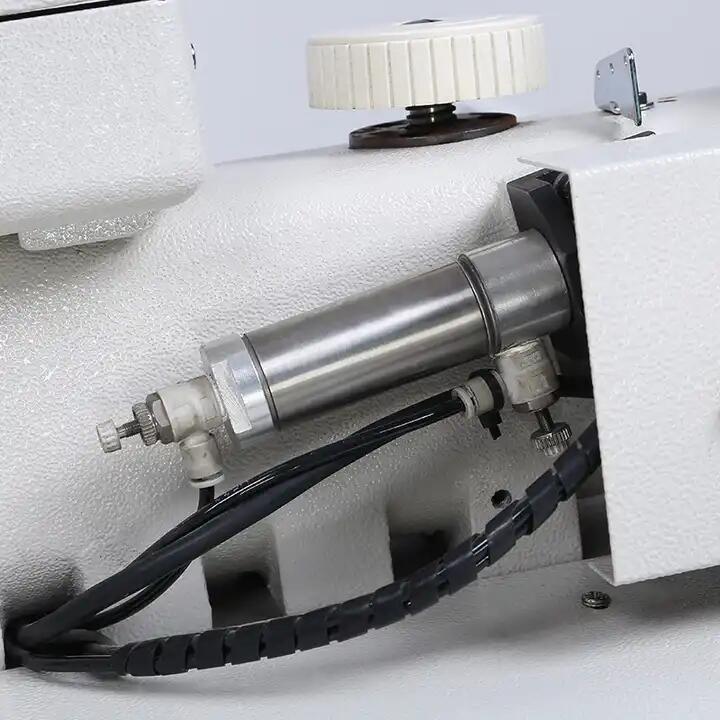

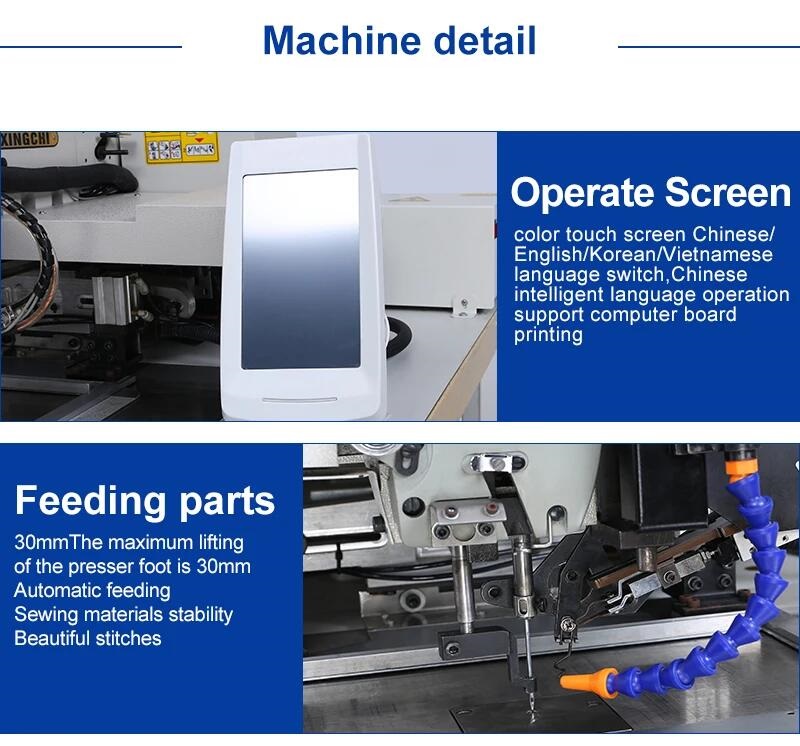

Presser foot type: pneumatic
Suture:600D-1500D
Thread trimming system: electric heating shearing system

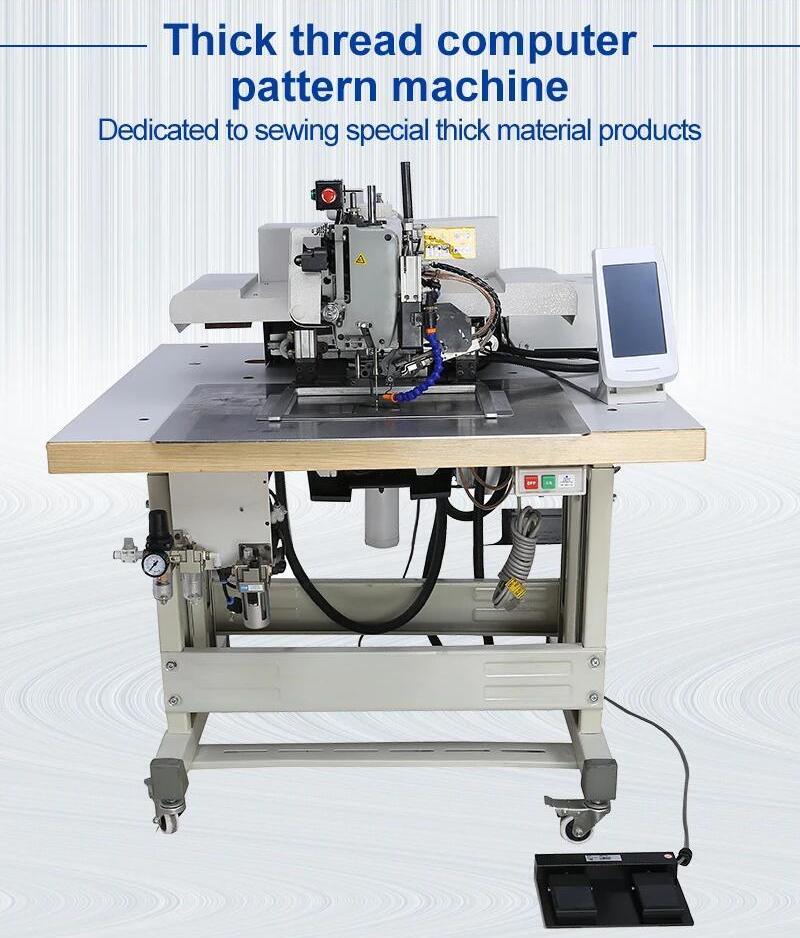

Main features of thick line pattern machine:
There are extremely strict safety standards in the production of flexible slings and climbing ropes. The tensile strength of the end joint reinforcement seams exceeds that of the synthetic sling itself. Xingchi brand thick material pattern machine is a special sewing equipment developed based on this safety standard. It adopts an imported large-scale semi-rotating shuttle with a large amount of core thread, ensuring sewing efficiency even when using extremely thick and high-strength polyester sewing thread. It adopts a step-by-step closed-loop computer control system, which can be programmed freely. New patterns can be designed, downloaded and stored at any time according to customer requirements, which can save labor to the maximum extent. The super motor button torque and needle penetration can sew extremely thick and hard multi-layer materials (such as 2 to 4 layers of 3.5MM thick synthetic fiber slings, 25MM thick climbing ropes). Adopt pneumatic lubrication system to reduce maintenance time and extend machine service period. Customized production according to different materials, threads and manufacturing requirements to ensure that the equipment can fully meet the customer's sewing requirements, including the safety standards and appearance requirements of slings and climbing ropes. The new partner service plan ensures that there are no worries during the use of the product.
Scope of application:
Synthetic fiber slings, flat slings, polyester slings, Dyneema slings, large-tonnage flexible slings, thousand-layer soles, nano soles, silk shoes, complete sets of slings, mountaineering equipment, safety slings, industrial slings, harnesses , parachutes, military slings, military protective clothing and other reinforced seams, climbing ropes (static ropes, dynamic ropes), rock climbing ropes.
